Oil and Gas Pipe Rolling Machine

Description

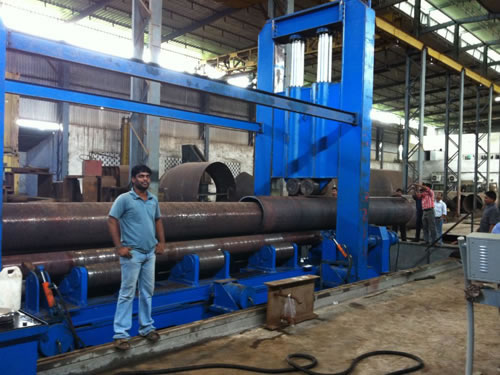

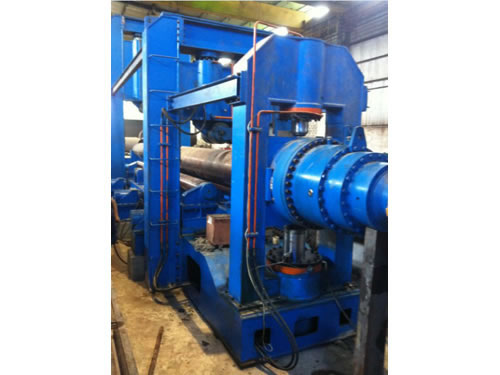

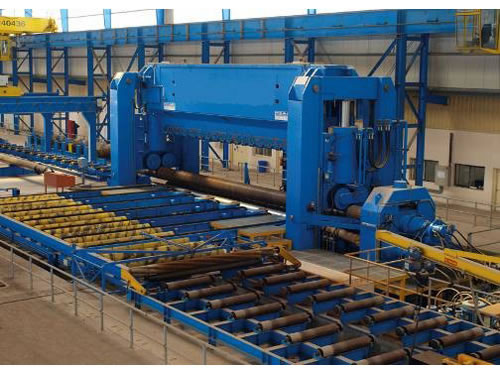

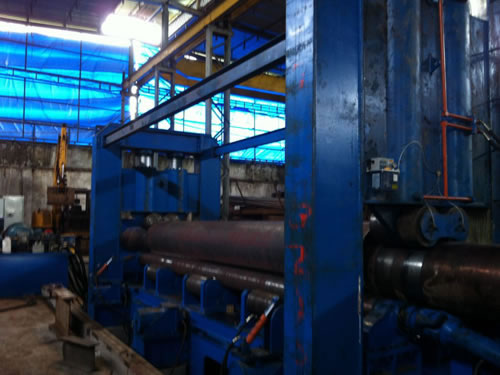

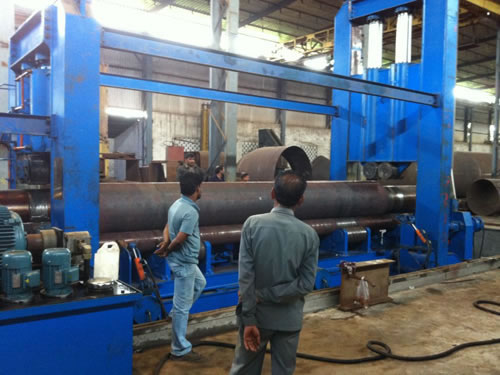

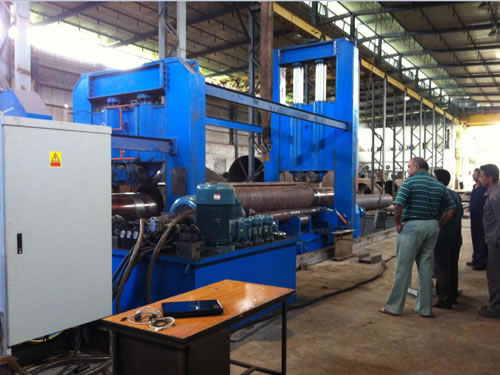

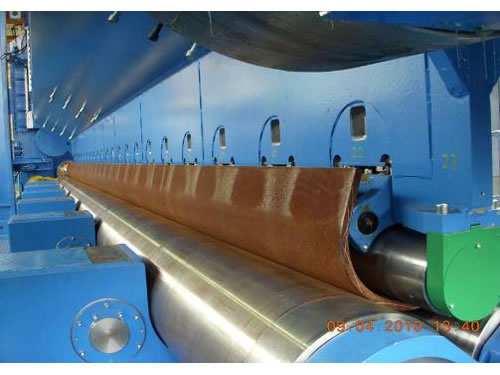

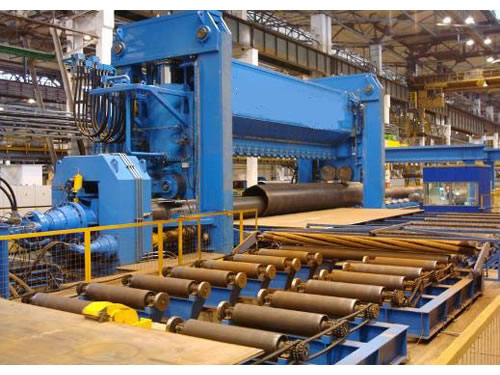

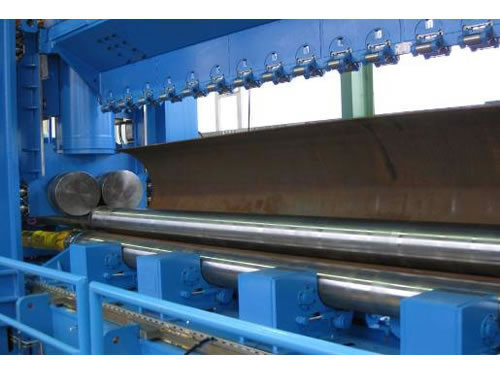

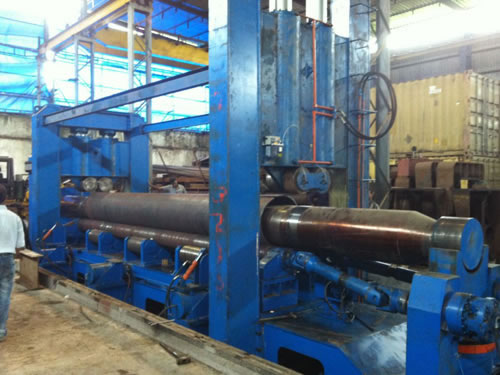

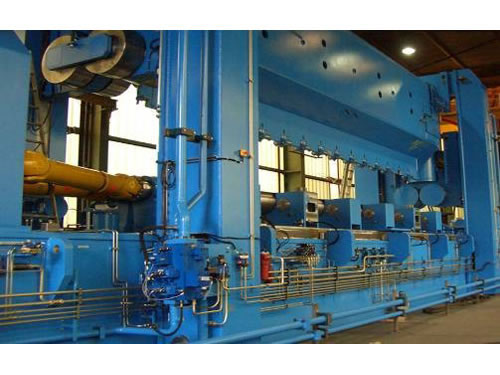

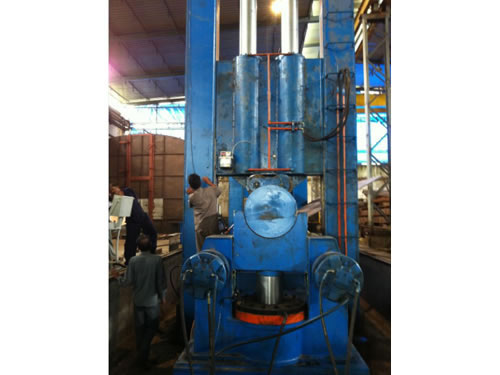

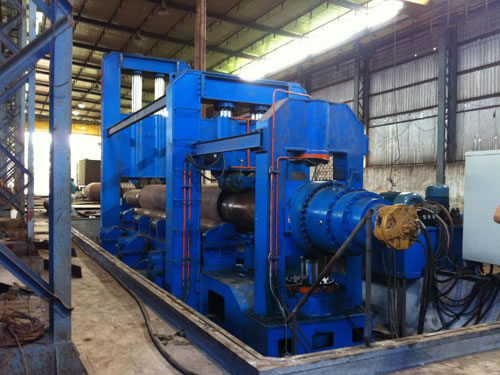

Oil and gas pipe rolling machine is specially designed for rolling long and small diameter tubes. The main structure of this oil and gas transmission pipe bending machine,includes rack, material side rack, fixed side rack, work roll, drive, support roller device, discharging device, anti-distortion device, balance equipment, hydraulic system, electrical control system and many other components. The upper roll of this pipe rolling machine uses the back deformation method to eliminate the deflection in manufacturing process.

Advantages

1. During the bearing life period, the oil and gas transmission pipe bending machine owns permanent lubrication without refueling.
2. This pipe rolling machine is driven hydraulically with high efficiency.
3. The clamping pressure is adjustable without skidding. The productivity is 50% to 80% more than traditional one.
4. The rolling diameter of HB oil and gas transmission pipe bending machine can catch 1.1 times of the upper roll.
5. Oil and gas pipe rolling machine is easy and convenient to operate and maintain.

Technical Parameters

Model Rolling Thickness
(mm)
Max Plate Width
(mm)
Diameter of Upper Roll
(mm)
Rolling Diameter
(mm)
Main Motor (kw)
W11G-16×12000 3-16 12000 300 φ317-φ800 55
W11G-20×12000 3-20 12000 350 φ406-φ1400 75
W11G-30×12000 4-30 12000 500 φ610-φ1600 90
W11G-40×12000 5-40 12000 560 φ813-φ1800 150

Other Products

  • Marine Plate Rolling Machine
  • Vertical Plate Rolling Machine
  • Two Roller Plate Rolling Machine
  • Cone Plate Rolling Machine
  • Symmetrical Plate Rolling Machine
  • Asymmetrical Plate Rolling Machine
HB Machinery is a professional manufacturer and supplier of oil and gas pipe rolling machines in China. In addition, we also provide cut-to-length line, leveling machine, shearing machine, press brake, profile bending machine,

etc. Our oil and gas transmission pipe bending machines are well received by customers all over the world.
