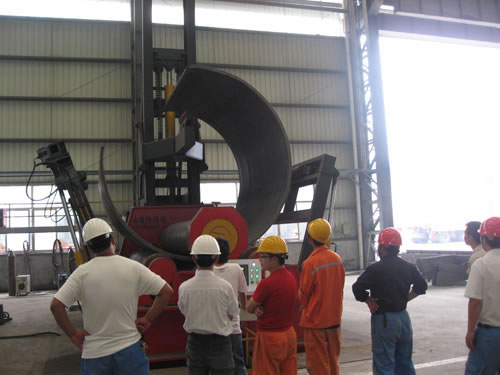

Hydraulic Four Roller Plate Rolling Machine

Description

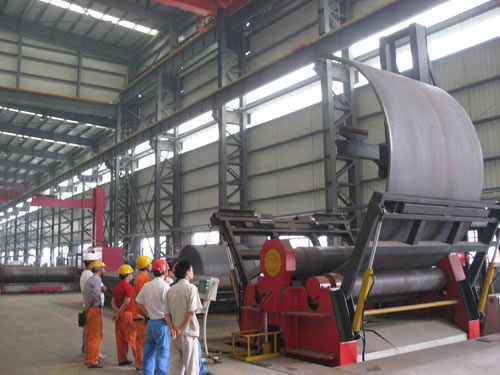

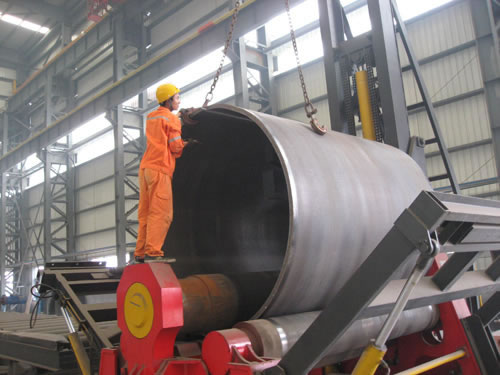

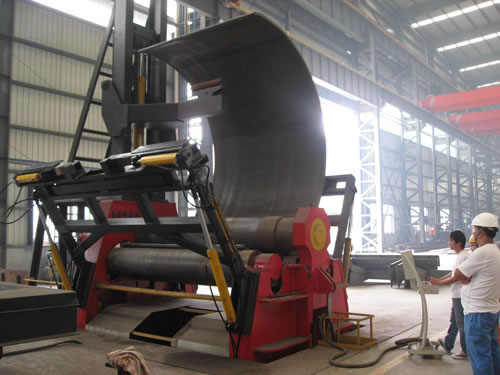

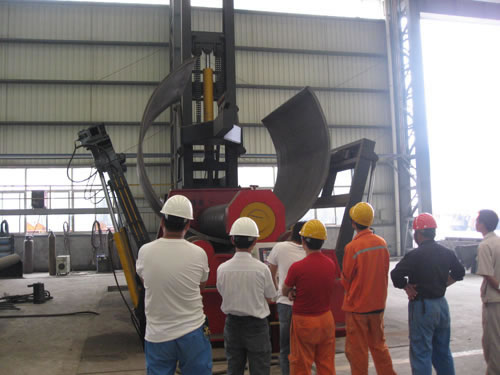

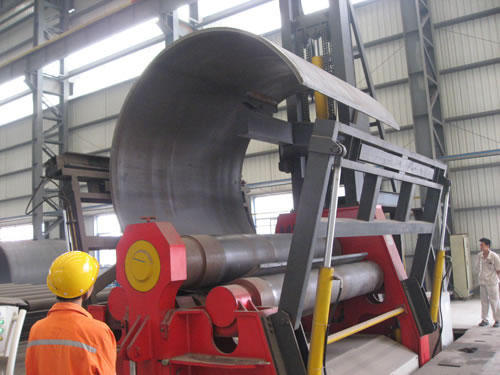

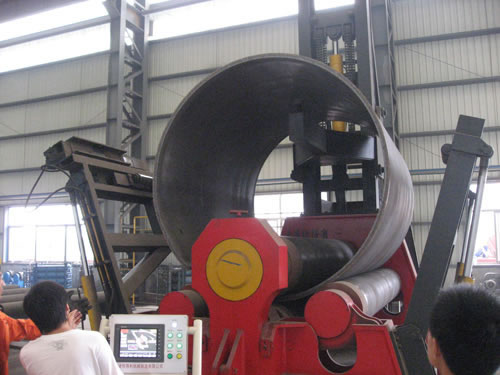

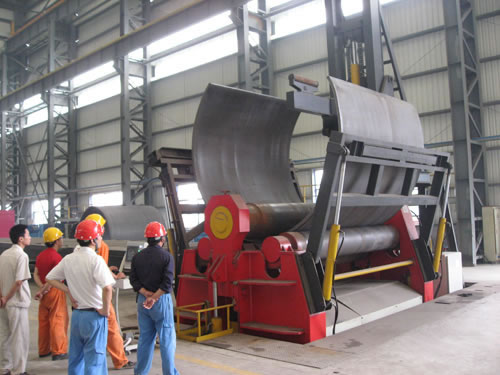

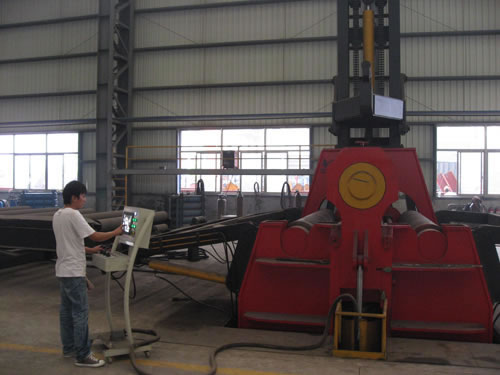

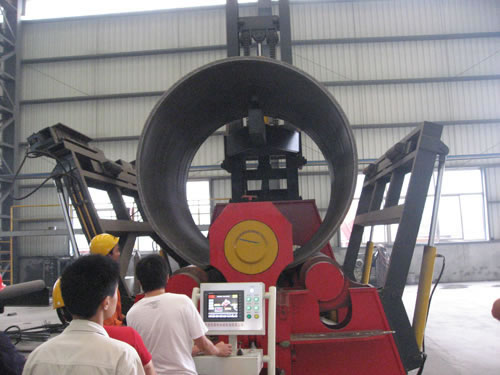

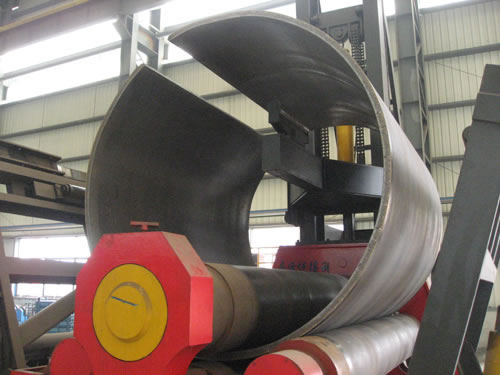

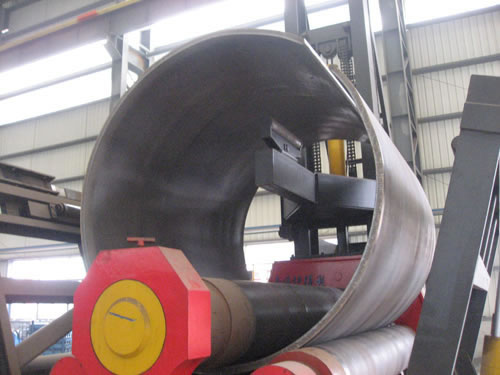

The hydraulic four roller plate rolling machine is also known as four roller hydraulic plate bending machine. It is specially used for rolling wide, small diameter and thick plates. Both the upper roll and lower roll are equipped with support system for reducing the deformation of the rollers. The main structure of the rolling equipment includes upper roll, lower roll, side roller, downturn system, left and right side frames, chassis, balance system, hydraulic system and electrical control system. The four roller hydraulic plate bending machine is of high technology, multifunction, high precision and convenient operation. HB four roller plate rolling equipment is an ideal large or medium plate bending equipment at present. Possessing NC control system, this hydraulic rolling machine can level easily and realize circle forming.
HB Machinery is a professional manufacturer and supplier of four roller hydraulic plate bending machines in China. In addition to this rolling equipment, we also provide cut-to-length line, leveling machine, shearing machine, press brake, profile bending machine, etc. Our products are well received by customers all over the world.

Technical Parameters of Four Roller Hydraulic Plate Bending Machine

Model	Diameter of Upper Roll	Diameter of Lower Roll	Diameter of Side Roller	Main Motor (kw)
W12-10×2000	240	225	180	5.5
W12-15×2500	280	260	225	11
W12-20×2000	300	290	260	15
W12-25×3000	420	400	325	30
W12-30×2500	420	400	325	37
W12-35×3500	550	535	420	55
W12-40×2500	510	490	410	55
W12-50×3500	640	625	480	75
W12-55×3000	640	625	480	75
W12-60×3500	700	680	520	75
W12-70×3000	720	700	550	90
W12-80×3500	840	830	630	55×2
W12-90×3500	890	880	670	75×2
W12-100×3500	925	905	695	45×4
W12-120×4000	1020	1000	770	55×4
