Description

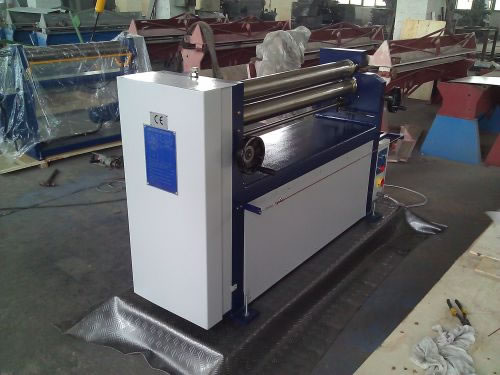

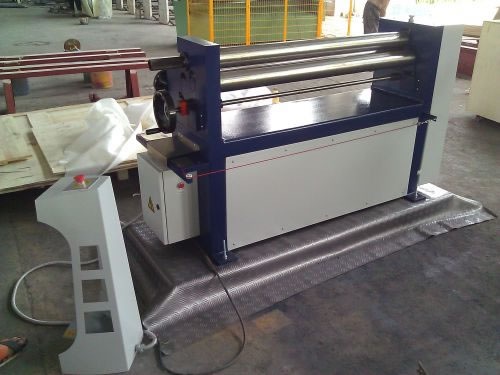

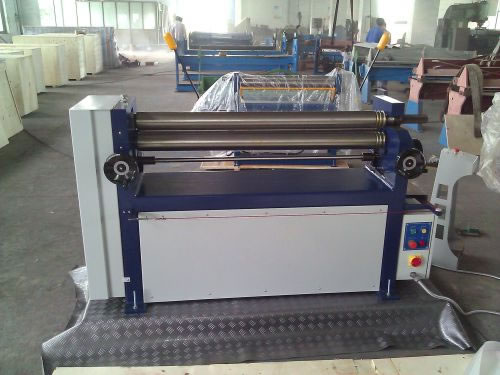

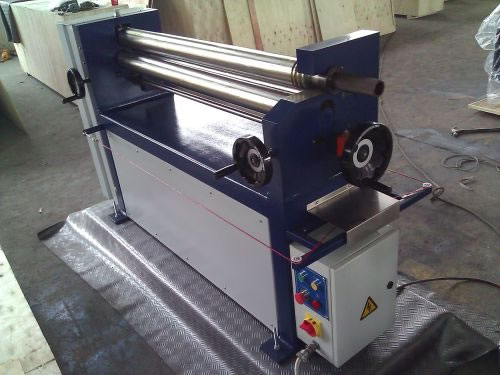

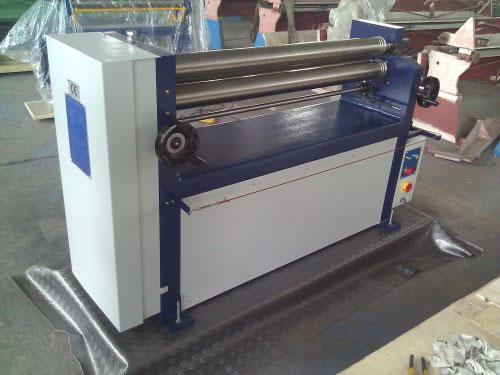

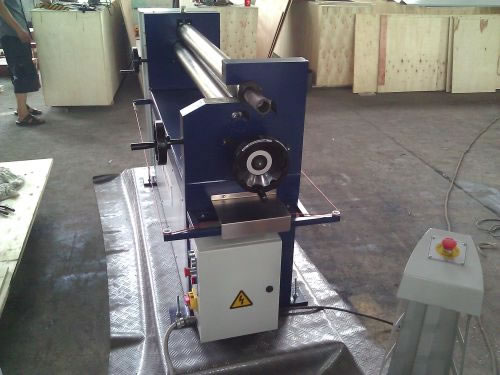

The mechanical asymmetrical plate rolling machine is also known as mechanical asymmetrical 3-roller bending machine. It is often used for bending metal sheets. This mechanical plate bending machine adopts push bending principle to make metal sheets deform between the up and down roller and top roll. The metal sheets can be shaped into cylinder or cone workpieces, which greatly improves production efficiency. This asymmetrical plate rolling machine is a commonly used device in the metal structure and manufacturing industry. The mechanical plate bending machine adopts the 3-roller asymmetrical structure with the upper roll as the main drive and the lower roll making vertical movement so as to clamp the plate materials tightly.
Features
-
The mechanical asymmetrical plate rolling machine features compact structure, easy operation and convenient maintenance.
-
This mechanical plate bending machine adopts special bending technology. It has function of high efficiency end pre-bending.
-
The working process can be numerically controlled.
-
The asymmetrical plate rolling machine can roll many different kinds of arc working pieces.
-
This mechanical plate bending machine is equipped with electrical motor center and extension die for bending profiles.
Operation
-
Before operation, rotate hand wheels on the both sides of the lower roll to adjust the gap between the top roll and the lower roll and ensure the gap is equal to the thickness of the coiled material.
-
When we use this asymmetrical plate rolling machine for rolling materials, we should put materials into the side roller for pre-bending.
-
When using the mechanical plate bending machine, operators must control the rolling diameter, side roll and the distance between the upper roll and the lower roll.
-
In order to take out the finished products, users should pull out the lower roller handle to the outside.
Parameters of Mechanical Asymmetrical Plate Rolling Machine
|
Model
|
Coiled Plate Thickness
(mm)
|
Coiled Plate
Width
(mm)
|
Coiling Speed
(m/min)
|
Top Roll Diameter
(mm)
|
Bottom Roll Diameter
(mm)
|
Side Roller Diameter
(mm)
|
Motor Power
(kw)
|
|
W11-2×1050
|
2
|
1050
|
6
|
80
|
80
|
80
|
1.5
|
|
W11-3×1200
|
3
|
1200
|
8.1
|
125
|
125
|
125
|
3
|
|
W11-2×1600
|
2
|
1600
|
8.1
|
125
|
125
|
125
|
3
|
|
W11-2×2000
|
2
|
2000
|
8.1
|
125
|
125
|
125
|
3
|
|
W11-3×2000
|
3
|
2000
|
5.4
|
160
|
160
|
150
|
4
|
|
W11-2×3000
|
2
|
3000
|
5.4
|
160
|
160
|
150
|
4
|
|
W11-4×1000
|
4
|
1000
|
5.4
|
140
|
140
|
140
|
3
|
|
W11-4×1200
|
4
|
1200
|
5.4
|
140
|
140
|
140
|
3
|
|
W11-4×2000
|
4
|
2000
|
5.4
|
150
|
150
|
150
|
3
|
|
W11-6×1000
|
6
|
1000
|
5.4
|
140
|
140
|
140
|
3
|
|
W11-6×1500
|
6
|
1500
|
5.4
|
150
|
150
|
150
|
4
|
|
W11-6×2000
|
6
|
2000
|
5.4
|
160
|
160
|
160
|
4
|
