Description

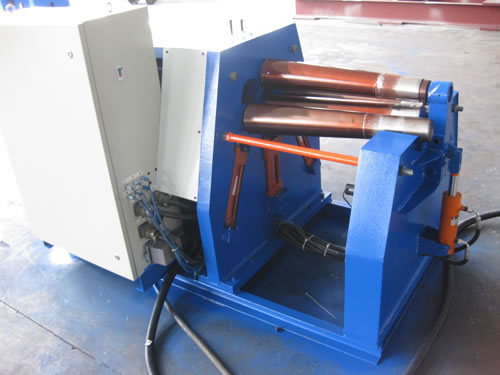

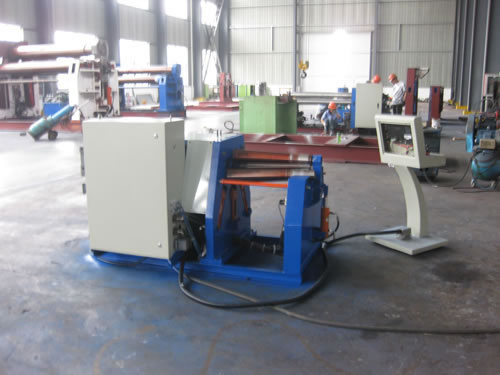

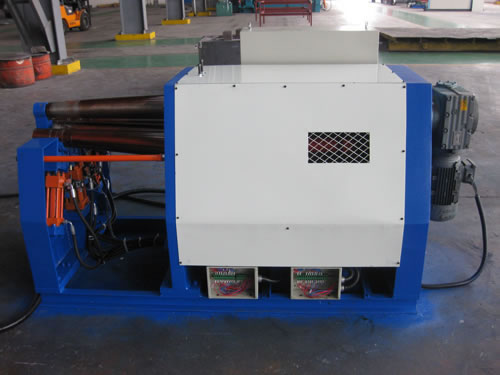

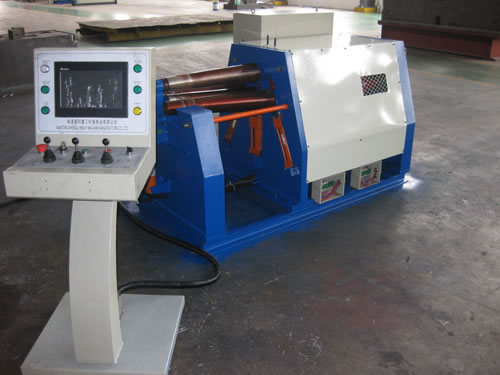

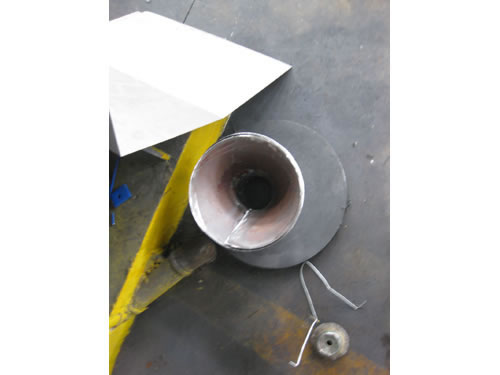

HB four roller cone plate rolling machine is developed by introducing foreign product technology and combining domestic product features. It is specially used for rolling cones. Featuring high efficiency, low energy consumption and easy operation, this cone bending machine's performance is superior to other rolling machines in China. The main structure of four roller cone plate rolling machine adopts cone roller method. There is no mutual sliding between the work-piece and roll surface.
Specifications
1. This rolling equipment owns high rolling efficiency. This cone bending machine is suitable for single variety and mass production.
2. An obvious advantage is that the four roller cone plate rolling machine can feed materials once without the aid of auxiliary devices.

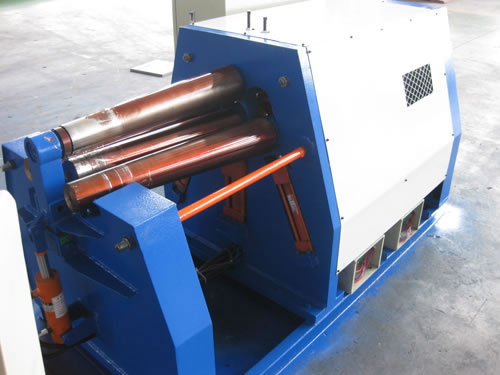

3. The upper roll is the main drive roller. Motive power is engaged with the upper roll through the planetary reducer, which provides torque to the rolling plate. The lower roll of the cone bending machine can move vertically to clamp the plate. The side rollers of the four roller cone plate rolling machine are installed on the both sides of the lower cone roller. They can move up and down driven by the cylinder.
4. This cone bending machine can also finish pre-deformation of the both ends of the plate.
Operation
The cone roller drives the reducer through the hydraulic motor. The reducer can transmit drive torque to the upper cone roller to make work-piece deform. The cone roller motor has balance brake function to ensure stable and accurate operation of the four roller cone plate rolling machine.
Technical Parameters
|
Model
|
W12ZNC-3×1200
|
|
Max Width
|
1200 mm
|
|
Working Roller Length
|
1300 mm
|
|
Max Rolling Thickness
|
3 mm(σs≤235 MPa)
|
|
The Length of The End Line When Full Loaded
|
≤10 mm
|
|
Cone Degree
|
≤60°, Top Diameter ≥40 mm
|
|
Rolling Speed
|
about 3.5 (m/min)
|
|
Motor Power
|
5.5 kw
|
HB Machinery is a full-service supplier of four roller cone plate rolling machines in China. In addition to this cone bending machine, we also provide cut-to-length line, leveling machine, shearing machine, press brake, profile bending machine, etc. Our cone rolling machines are well received by customers all over the world.
