Hydraulic Press Brake

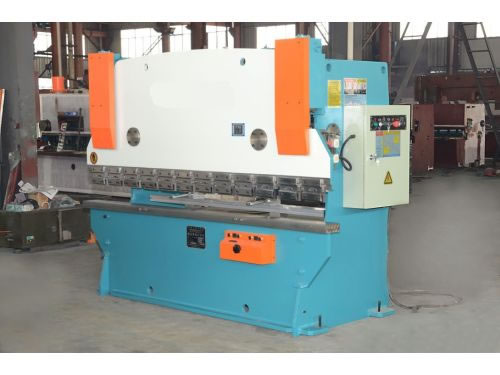

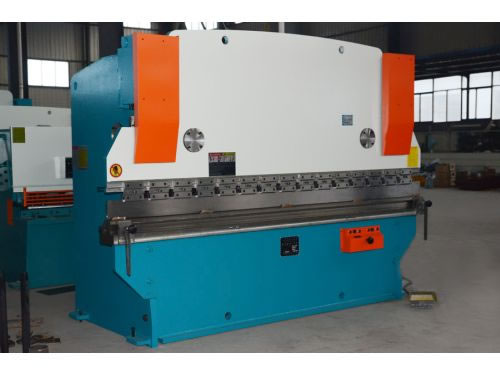

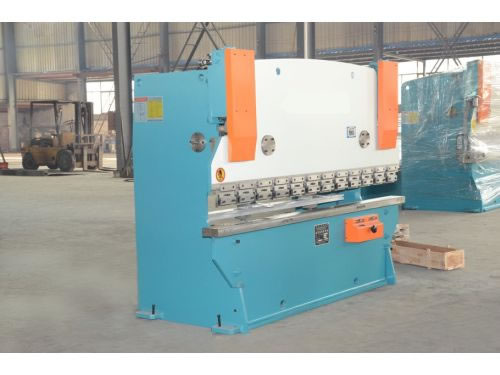

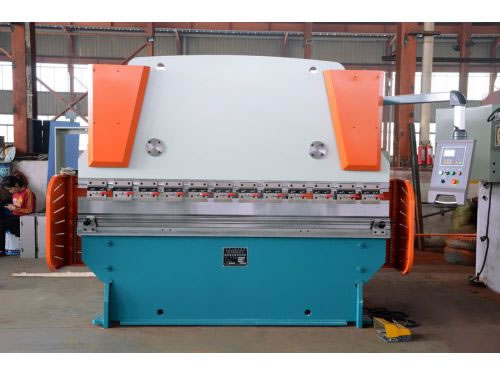

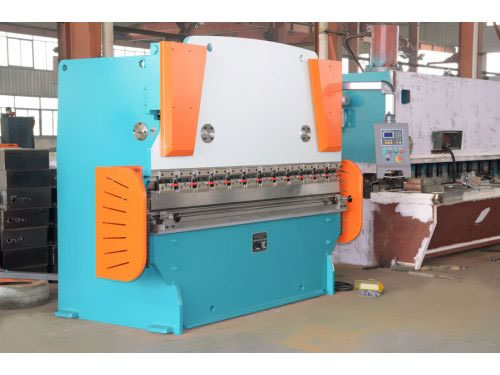

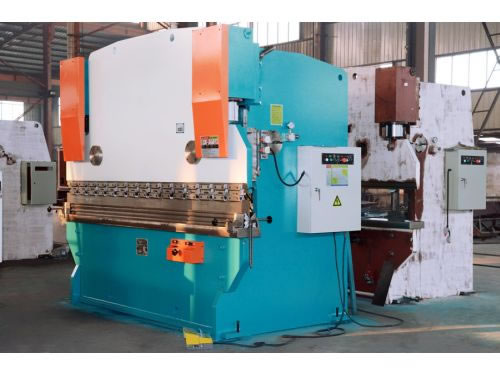

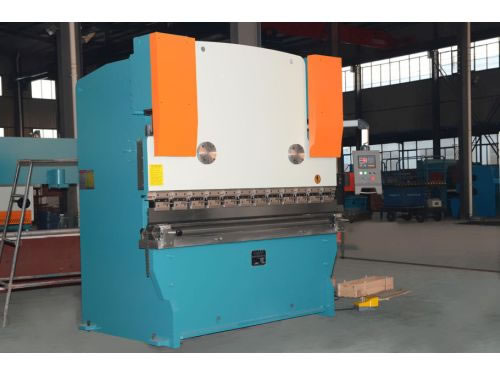

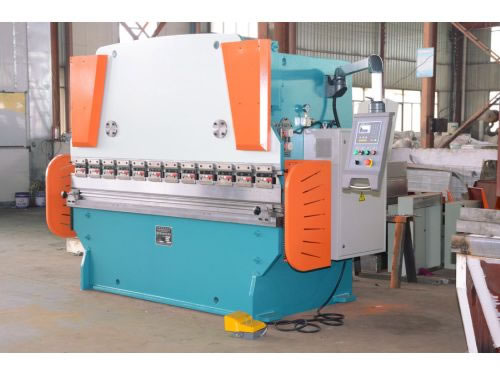

Hydraulic Press Brake
EnglishEnglishRussianRussianSpanishSpanish

Description:

The hydraulic press brake adopts steel metal welded structure with good strength and excellent rigidity. This hydraulic bending machine is stable, safe, reliable and easy to operate. Hydraulic transmission avoids severe overloading accidents caused by improper use while working. The upper slider is an integral panel equipped with deflection compensation mechanism to ensure getting higher bending accuracy. The hydraulic press brake (hydraulic bending machine) is extensively used for bending and processing sheet metals in automobile, machinery, shipbuilding, electronics, light industry and decoration industry.

Features

Technical Parameters of Hydraulic Press Brake

Type Nominal Pressure Length of Workbench Distance between Stand Columns Throat Depth Slider
Stroke 		Number of Stroke Max. Opening Height Main Motor Power Weight Overall Dimension
L× W × H
kn mm mm mm mm t/m mm kw kg mm
WC67Y-40/2200 400 2200 1850 250 100 ≥11 340 5.5 2,850 2260 × 1200 × 1900
WC67Y-40/2500 400 2500 2055 250 100 ≥11 340 5.5 3,500 2560 × 1200 × 1920
WC67Y-63/2000 630 2000 1650 250 100 ≥10 335 5.5 4,200 2160 × 1725 × 2200
WC67Y-63/2500 630 2500 2050 250 100 ≥10 335 5.5 4,800 2605 × 1725 × 2200
WC67Y-63/3200 630 3200 2670 250 100 ≥10 335 5.5 5,850 3300 × 1725 × 2355
WC67Y-63/4000 630 4000 3300 250 100 ≥10 350 5.5 6,500 4000 × 1725 × 2405
WC67Y-80/2500 800 2500 2050 250 100 ≥10 335 7.5 5,500 2605 × 1725 × 2355
WC67Y-80/3200 800 3200 2660 250 100 ≥10 335 7.5 6,500 3300 × 1725 × 2405
WC67Y-100/2500 1000 2500 1950 320 140 ≥8 385 7.5 6,500 2560 × 1320 × 2510
WC67Y-100/3200 1000 3200 2650 320 140 ≥8 385 7.5 8,000 3260 × 1320 × 2510
WC67Y-100/3600 1000 3600 3000 320 140 ≥8 385 7.5 8,500 3660 × 1320 × 2510
WC67Y-100/4000 1000 4000 3200 320 140 ≥8 385 7.5 9,000 4060 × 1320 × 2760
WC67Y-100/5000 1000 5000 4200 320 150 ≥8 420 7.5 11,000 5100 × 1740 × 2800
WC67Y-125/3200 1250 3200 2680 320 150 ≥8 370 7.5 8,500 3280 × 1820 × 2430
WC67Y-125/3600 1250 3600 3000 320 150 ≥8 370 7.5 9,500 3690 × 1740 × 2450
WC67Y-125/4000 1250 4000 3280 320 150 ≥8 370 7.5 10,000 4080 × 1825 × 2430
WC67Y-160/3200 1600 3200 2640 320 200 ≥6 470 11 11,500 3270 × 1625 × 2665
WC67Y-160/4000 1600 4000 3300 320 200 ≥6 470 11 12,500 4070 × 1625 × 2765
WC67Y-160/4500 1600 4500 3300 320 200 ≥6 470 11 14,000 4580 × 1930 × 2800
WC67Y-160/5000 1600 5000 4100 320 200 ≥6 470 11 15,000 5080 × 1930 × 3160
WC67Y-200/3200 2000 3200 2800 320 200 ≥3 465 11 13,000 3280 × 1930 × 2800
WC67Y-200/4000 2000 4000 3300 320 200 ≥3 485 11 15,200 4060 × 1750 × 2950
WC67Y-200/4500 2000 4500 3300 320 200 ≥3 465 11 18,000 4580 × 1930 × 2800
WC67Y-200/5000 2000 5000 4100 320 200 ≥3 465 11 21,000 5080 × 1930 × 3160
WC67Y-250/3200 2500 3200 2620 400 250 ≥3 560 18.5 18,000 3380 × 2000 × 3260
WC67Y-250/4000 2500 4000 3200 400 250 ≥3 560 18.5 20,500 4070 × 2000 × 3260
WC67Y-300/4000 3000 4000 3190 400 245 ≥3 560 18.5 29,000 4000 × 2035 × 3110
CNC System for Hydraulic Press Brake (Hydraulic Bending Machine)

DA-41


 DA-41 is a special two-axis CNC system for torsion axis synchronization bending machine. Adopting the latest electronic technology, it provides a number of unique solutions for bender slider, back gauge and input/output flexible definition. This system can use servo motor, double-speed AC motor, VVVF and multiple axis control modes. Depending on its application, bi-directional positioning or one-way positioning that can eliminate screw gap. The high-definition LCD display provides clear and easy operation interface. It also owns data programming for inputting angle and mold parameters. Operators can complete full-screen editing through tables. The bending parameters can be selected through a user-friendly operating cursor.
Features:
1. High-definition LCD display
2. Control of slider's stop position
3. Back gauge control
4. Angle programming
5. Set mould parameters
6. Control of escaping material
7. 100 programs
8. Each program with 25 steps
9. Panel mounting
10. Servo control, frequency control and double-speed AC control

DA-51


 DA-51 CNC system possesses bending machine's all basic functions, such as Y-axis angle control programming and 4 +1 axis control. With a clear LCD display, the front panel can provide a user-friendly and easy operation interface. DA-51 provides users 500 programs that each program owns program memory space for 25 steps. All the working steps and parameters are sequentially arranged in a list. Each program has an additional page for detail description of molds, material properties and counting. Unique shortcut structure provides the most direct way for programming to ensure a quick and simple product programming. This system spends less programming time and testing time that makes bending machine more effective. The basic control functions include Y1, Y2 and X axis. The second back gauge axis R / Z or X2 axis is optional.
Features:
1. One page programming
2. Optional R axis, Z axis or X-axis
3. Workbench deformation compensation
4. Panel mounting
5. Huge memory space
6. Mould library
7. Servo control, frequency control and AC motor control

DA-52


 The integrated DA-52 CNC system can not only be applied to the torsion axis synchronization bending machine control, but also be used to electro-hydraulic synchronization bending machine control. Based on 4-axis control panel mounting structure, it can be mounted directly to a cabinet or in the suspended cabinet. With DELEM friendly user interface and TFT true color LCD display, DA-52 system possesses all the basic functions of bending machine control. Its unique shortcut approach provides a fast and simple programming. Y axis angle programming, crowning compensation and pressure control are all standard fittings. Based on the latest technology, DA-52 system provides a stable and reliable solution. Equipped with a USB interface, it greatly facilitates fast backup of product and mold.
Features:
1. One page fast programming
2. Guide shortcut
3. 6.4 " LCD true color TFT display
4. Max. 4-axis control (Y1, Y2 and two additional axes)
5. Workbench compensation control
6. Mold / material / product library
7. USB interface
8. Panel mounting structure and optional suspension box
9. Advanced Y-axis control algorithm can control closed loop or open loop valve.

DA-56


 Integrated DA-56 CNC system has DELEM two-dimensional graphics programming design tools convenient for NC programming. Bending sequence specified function allows the machine to adjust and test work is reduced to a minimum. Press the key once to generate the NC program. This system can automatically calculate the position of all axes and produce directly according to the actual dimension displayed on the screen. During the production process, operators can make use of DA-56 graphic simulation bending procedure to guide operation. The basic system configuration includes Y1-Y2-X-R axis, R-axis, Z or X2 axis. Workbench deformation compensation function is a standard configuration. CNC system adopts the most advanced technology with high flexibility and easy operation. The USB interface provides fast backup of products and moulds. Color TFT display and stylish user interface provides convenience for flash-programming. DA-offline provides solutions for offline programming.
Features:
1. 2D programming
2. 10.4 "LCD TFT color display
3. Determination of bending procedure
4. Calculation of expanded length
5. Workbench deformation compensation
6. USB interface
7. Servo control, frequency control and AC motor control

DA-65W


 DA65W CNC system for electro-hydraulic synchronization bending machine adopts modular structure and flexible combination multi-axis system extending up to 20 axes. PLC can reduce circuit design and increase machine's reliability. Electrical design specifications and installation dimensions are in compatible with DA-6X series. With FLASH ROM, it can upgrade system through floppy disk. The full range of anti-collision detection and warning can avoid misoperation. It is a dedicated bending system for automatic process calculation and optimization.
Features:
  1. Self-diagnostic function provides detection and diagnosis for all function units.
  2. Multilingual choice includes Chinese.
  3. This system has 12-inch, four grayscale, VGA display
  4. Standard 3.5 " floppy drive and RS232 interface can realize external storage of programs and parameters, and online or offline programming.
  5. 2D graphical programming uses different grayscale display to easily identify workpiece, mould and lathe bed.
  6. The system possesses 2500 program lines, 90 dies and ten kinds of overall memory capacity.
  7. It can automatically calculate the clamping point, mold safe area, bending pressure, unloading distance, workbench deformation compensation, etc.
  8. Barcode recognizer interface, ethernet interface, multi-machine interaction and sheet support are optional.

DA-66W


 The DA-66W CNC system of the bending machine owns functions of graphical programming, bending procedure calculation and two-dimensional or three-dimensional bending analog. It provides users with unprecedented friendly operator interface that is beneficial to fast programming. Programming on the Delem DA-66W CNC system, each side of products can be fully rendered on the screen. Customers can see two-dimensional or three-dimensional bending image simulation on the screen.
Features:
1. The error alert system and help text can provides timely tips when operators operate programs incorrectly or the machine works in failure. This can save a lot of time to find machine errors.
2. Real-time windows system can deal with multitasking and document management.
3. Standard Ethernet interface can simply connect windows network.
4. The USB interface can be easily connected to an external device (keyboard, mouse, etc.).
5. Colorful display screen adopts 12" TFT.
6. 2D graphical CNC system is also used.
7. This system adopts automatic bend sequence.
8. PLC functions are provided by this CNC system.
9. Operation warning system is employed in this DA-66W CNC system.

DA-69W


 The DA-69W CNC system for the bending machine owns functions of graphical programming, bending procedure calculation and three-dimensional bending analog. It provides users with unprecedented friendly operator interface that is beneficial to fast programming. Programming on the Delem DA-69W CNC system, each side of products can be fully rendered on the screen. In three-dimensional space, bending expert program will automatically calculate the optimum bending sequence. Customers can also program and process products in three-dimensional space.
Features:
1. The error alert system and help text can provides timely tips when operators operate programs incorrectly or the machine works in failure. This can save a lot of time to find machine errors.
2. Real-time windows system can deal with multitasking and document management.
3. Standard Ethernet interface can simply connect windows network.
4. The USB interface can be easily connected to an external device (keyboard, mouse, etc.).
5. Colorful display screen adopts 12" TFT.
6. 3D graphical CNC system is also used.
7. This system adopts automatic bending sequence.
8. PLC functions are provided by this CNC system.
9. Operation warning system is employed in this DA-66W CNC system.

E20


 This product absorbs advantages of similar products both at home and abroad, combines domestic cutting and folding equipment application requirements and develops bending device CNC system especially used for Chinese users. It adopts unique drive control technology which ensures work accuracy and reduces the cost of CNC bending machine. This creates conditions for the popularization of press brake CNC.
Features:
1. This system can do positioning control for back gauge of bending machine.
2. It owns unidirectional and bidirectional positioning function that can effectively eliminate screw gap.
3. This system has material escape function which can block the interference between feeding device and workpiece, reduce wear and improve positioning accuracy.
4. It possesses automatic or manual search function of reference point.
5. This system has de-energized position memory function. It can protect parameters, locations and programs.
6. It owns fast position teaching function.
7. The multi-step programming function can realize multi-step automatic running, complete the one-time processing of multi-step parts and improve production efficiency.
8. Metric or imperial is optional to meet different users' needs.

E200


 Basic Functions:
E200 CNC system is based on the E20+ control functions. It adopts high-resolution LCD display and the latest electronic technology. This system is specially used for controlling torsion axis synchronization control bending machine back gauge and die block. One-touch operation of the function switch, customer-friendly operation interface and on-screen information can make customers operate programming, parameter setting and automatic machining operation easier and faster. The patented drive control technology guarantees working accuracy.
Main Functions:
  1. This system adopts 240 × 128 LCD display.
  2. Multi-step time programming can make the program run automatically and complete continuous positioning.
  3. The automatic concession function can avoid the interference between back gauge and workpiece.
  4. The unidirectional positioning function can eliminate the screw drive gap.
  5. Metric or imperial is optional.
  6. Chinese and English operating menus are provided by this system.
  7. It possesses position automatic compensation function.
  8. This system has adequate processing program storage space.
  9. It owns power memory function.

E210


 E210 is the latest functional torsion axis bending machine control system developed by ESTUN company. It includes all functions of E200 CNC system. The system is equipped with servo motor, servo drive, ball screw, linear guide and imported electric appliances.
Main Functions:
1. This system adopts 5.6-inch, 640×480 color display screen with high-grade delicate show.
2. It possesses advanced algorithms angle programming functions which helps it program quickly and conveniently.
3. The built-in PLC logic brings greater flexibility and stability.
4. It owns the upper and lower mould library.
5. This E210 CNC system can store 100 programs, each of which has 25 steps (E200 has 40 programs).

KV S525


 Features:
1. It adopts monochrome 5.7" LCD display (320×240 pixel).
2. This system can automatically check fill-out-form programming mode timely and automatically calculate the bending and compensation force.
3. All procedures, moulds and parameters can be saved in the machine's internal memory or U disk.
4. It provides programming function of the control shaft and other auxiliary functions.
5. This system can control three axes.

KV S540


 Features:
1. It adopts LCD 10.2 "TFT color display and SVGA anti-radiation.
2. Interactive 2D graphics editing and mould inputting are employed in this system.
3. It has functions of 3D display of workpiece, mould and machine framework.
4. The four manual 2D graphics is used to set the optimum bending sequence.
5. The system adopts similar WINDOWS operation mode. It adopts forms to program the shaft position and features simple operation. This system can automatically check and calculate the R-axis, X-axis and bending tonnage.
6. The preset standard PC keyboard is optional for customers.
7. It possesses user-defined alarm function.
